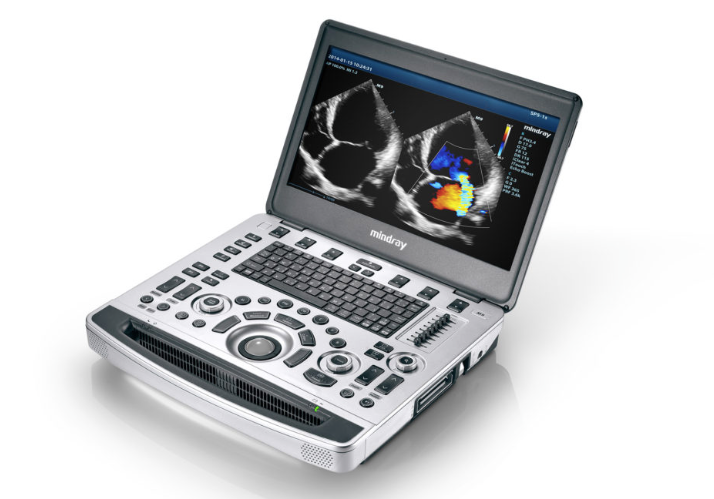

Mindray's M9 portable ultrasound system has been known as Mindray's most advanced portable ultrasound system so far, and has lived up to all of those expectations, and more. Engineered both internally and externally with a keen eye, some of the top imaging enhancing technology available today, and consumers perception of the ergonomics in mind, Mindray has developed a truly remarkable ultrasound system with the M9.
Mindray has instilled in this system some of the most diverse and advanced imaging technologies available today. Included in the M9's capacity is EchoBoost Cardiac Image Optimization (to enhance cardiac images). It also includes Needle Visualization, Stress Echo, AutoITM and Compound Imaging. It is also compatible with single crystal probes that provide higher quality ultrasound imaging.
The M9 is extremely versatile for a few reasons: Firstly, it is compatible with a rolling ultrasound cart, so that it can be used both in stationary (doctor's office, hospital, etc.), or portable (emergency room, ambulance) scenarios. Any sort of diagnostician can employ it in nearly any scenario.
Mindray has also made this system compatible with a wide array of ultrasound probe transducers. Ranging from Phased array probes to sector array, endocavitary to TEE and CW (continuous wave) transducers, the M9 is wildly multifaceted when it comes to transducer compatibility.
Ultrasound Features and Specifications:
- Single-Crystal Transducer
- EchoBoost Cardiac Image Optimization
- High Dynamic Range Color Flow
- Improved penetration for difficult patients
- 15.6" LED high resolution monitor
- TEE
- AutoLV
- AutoIMG
- AutoPW
- ECG and respiration monitoring
- TDI Tissue Doppler Imaging
- Stress Echo
Compatible Ultrasound Probes / Transducers:
- Mindray C5-1s Curved Array Probe
- Mindray C11-3s Curved Array Probe
- Mindray C6-2gs Curved Array Probe
- Mindray SP5-1s Phased Array Probe
- Mindray P10-4s Phased Array Probe
- Mindray P7-3s Phased Array Probe
- Mindray V11-3ws Endocavitary Probe
- Mindray P7-3ts TEE Probe
- Mindray L10-3s Linear Array Probe
- Mindray L14-6ns Linear Array Probe
- Mindray L12-4s Linear Array Probe
- Mindray L14-6ws Linear Array Probe
- Mindray CW2s CW Pencil Probe
- Mindray CW5s CW Pencil Probe
F.A.Q.
EchoBoost is a premier technology application that enhances cardiac ultrasound images.
Single crystal probes employ single crystal elements to produce better quality ultrasound images. Most other probes are multi-crystal, and rely on one another to produce quality images.
iClear is Mindray’s name for speckle reduction imaging. Speckle Reduction Imaging works by changing the frequency of the sound into different beams (as opposed to one stronger blast). This lowers the speckle that echoes back to the image, for the larger the beam, the more speckle. Another method includes lowering the beam’s power entirely – sacrificing slight image resolution but also preventing more speckle damage from perverting the image.
The M9 is a shared service system, and therefore is capable of projecting images for a whole array of applications. These include Abdominal, Anesthesia, Breast, Musculoskeletal, OB-GYN, Pediatrics, Small Parts, Superficial, Thyroid, Transcranial and Urological applications.
